Looking for a different battery size or model?
CLICK HERE → Search Battery Models
Our Lithium Polymer (LiPo) Battery Selection Database helps you find exact or similar battery models by model number, dimensions, capacity, and certification requirements.
More than 1,000 battery models are currently listed online, with approximately 1,000 additional models available by inquiry.
If you cannot find an exact match, we can help identify a similar or alternative LiPo battery solution based on your required size, capacity, and certifications.
Some battery models are available in stock for faster sampling and small-batch orders. Custom dimensions and higher-capacity LCO options with higher energy density are also available. All battery capacities are accurately rated.
Customization options include connectors, wire length, PCM/BMS, NTC, adhesive tape, and other requirements. Small-batch customization is also supported.
Battery Specification

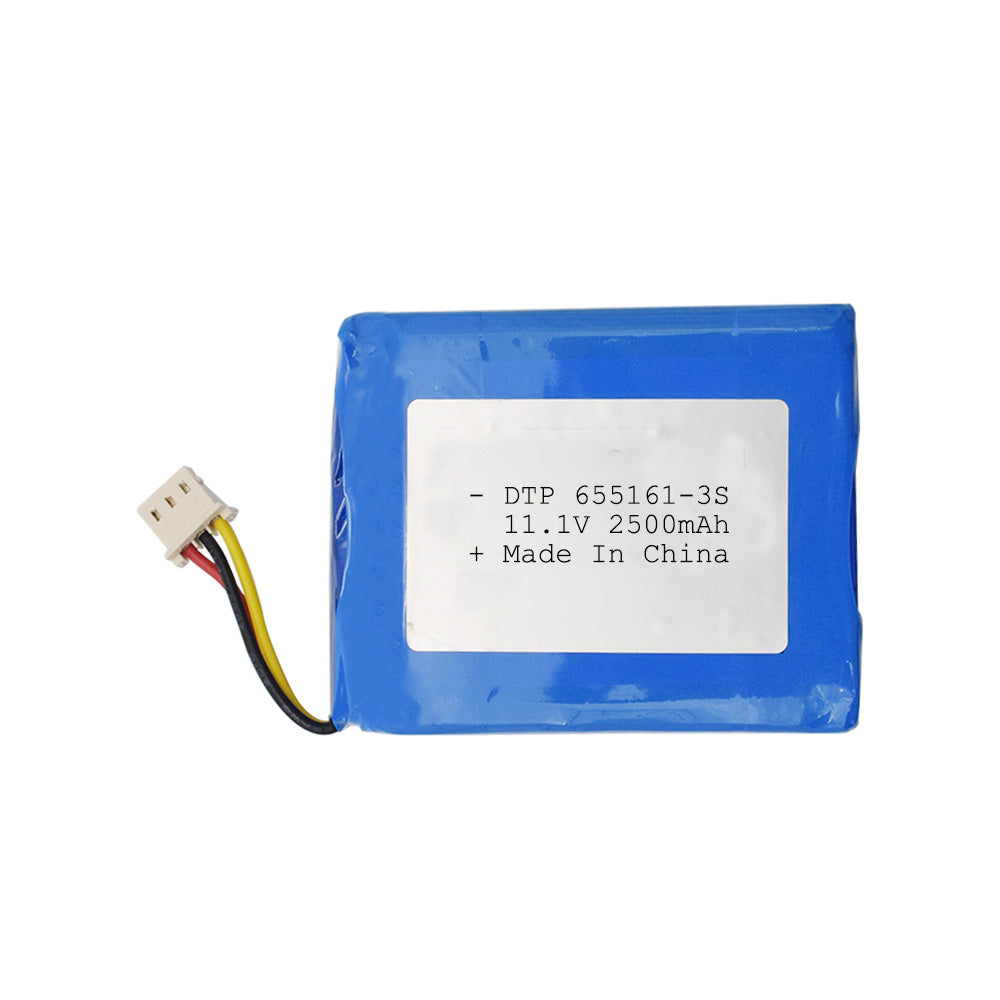

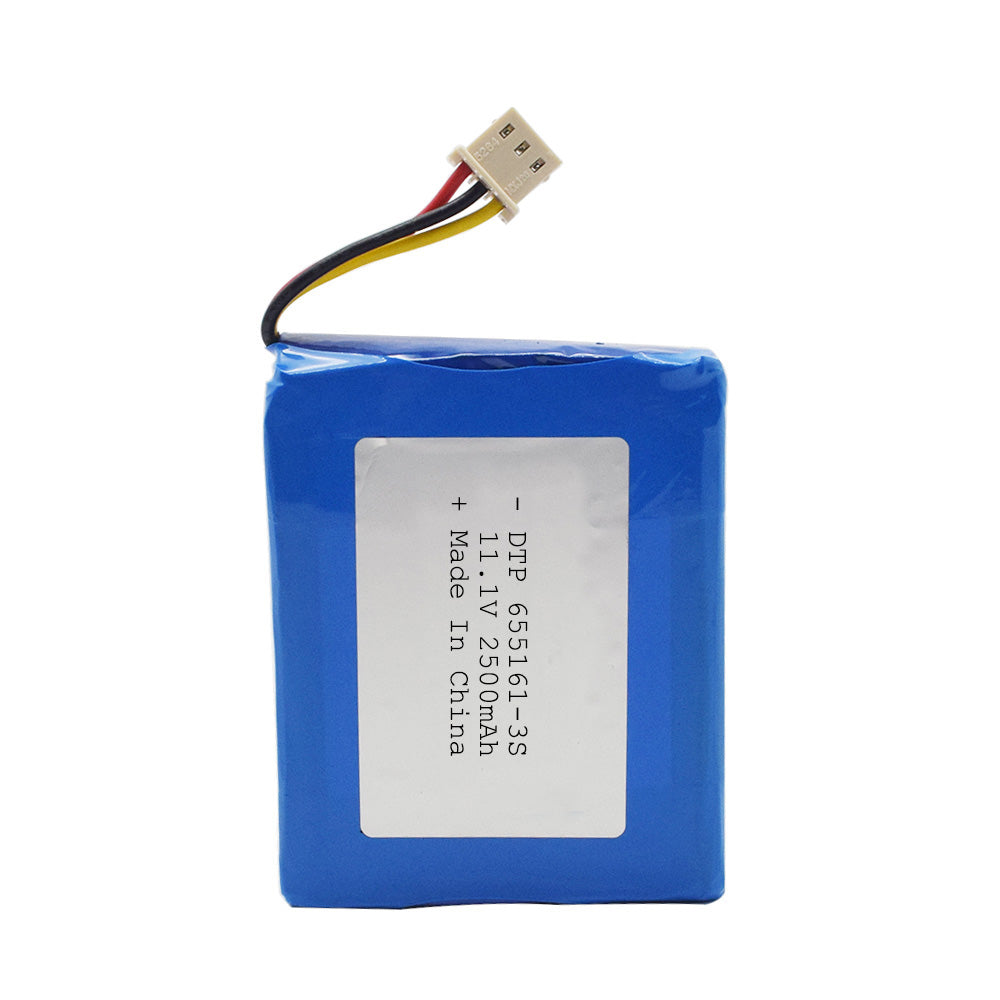

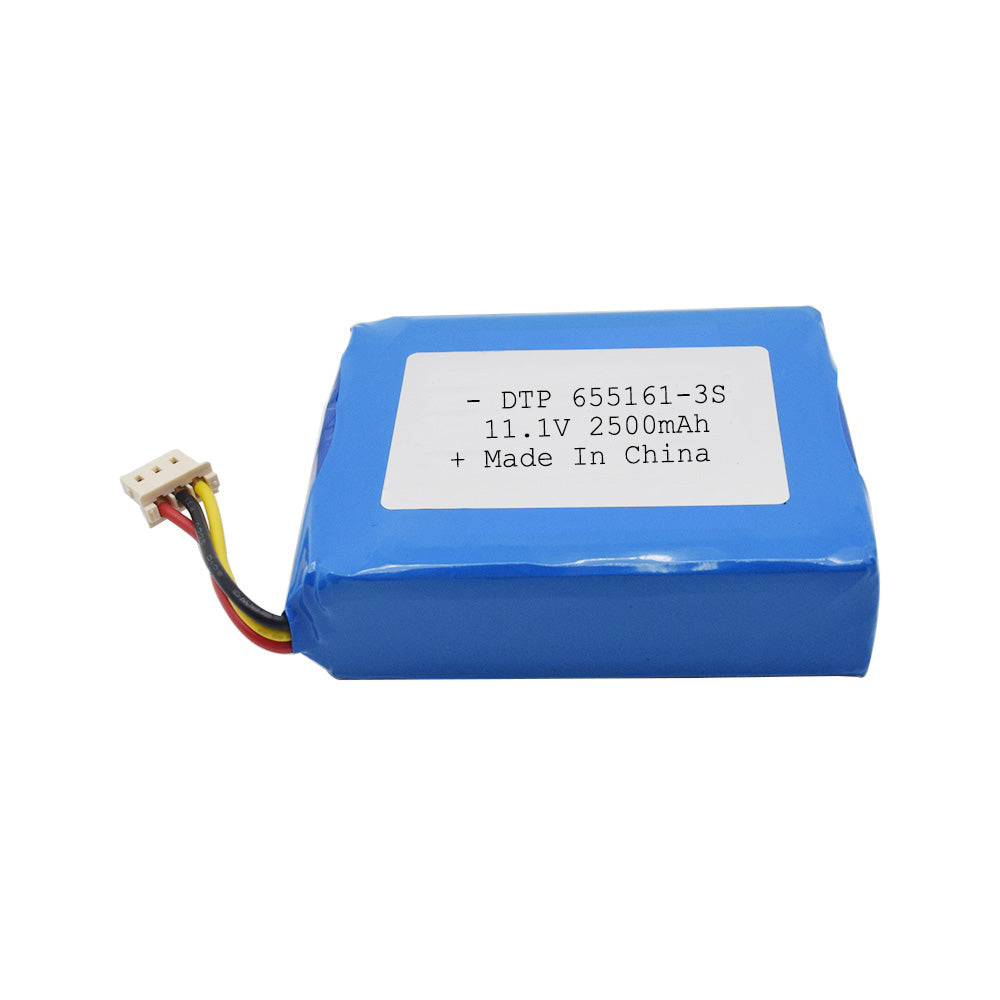

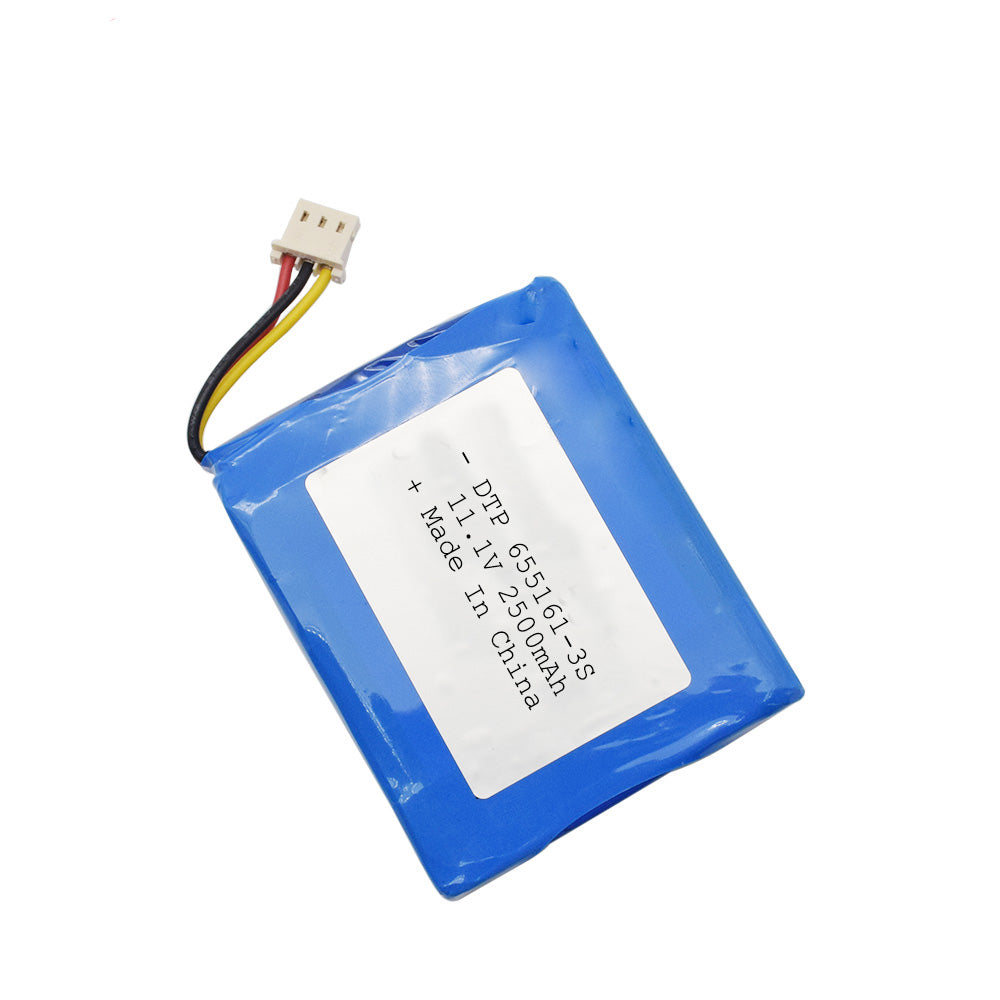

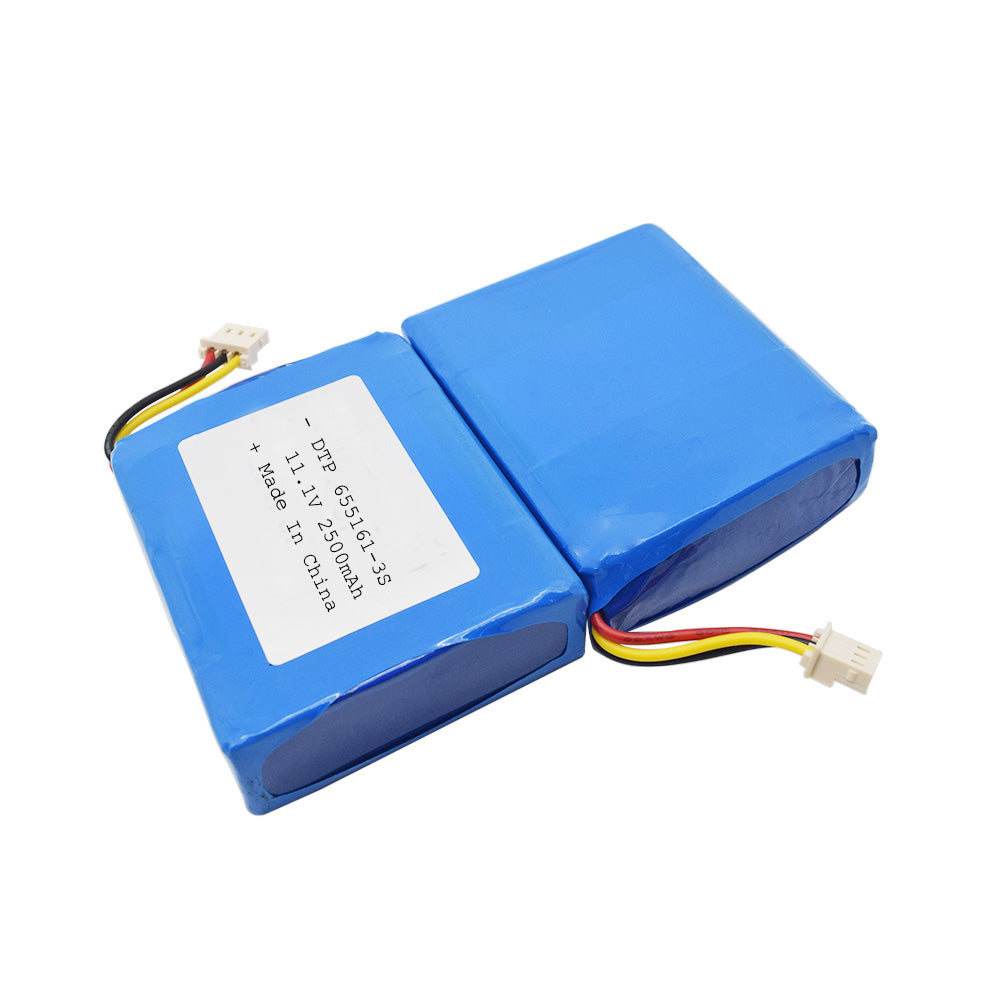

| Model | 655161-3S | Capacity | 2500 mAh |
|---|---|---|---|
| Nominal Voltage | 11.1 V | Maximum Charge Voltage | 12.6 V |
| Internal Resistance | <180 mΩ | Typical Cell Weight | 125.0 g |
| Cell Dimensions (T×W×L) | 19.5*51*61 mm(T × W × L) | ||
| Finished Pack Dimensions (with PCM & Wires) | 19.5*51*64 mm(T × W × L) Note: Final dimensions may vary depending on PCM placement, wire routing, connector type, or custom installation requirements. | ||
| Connector | Molex/JST/Customized | ||
| Sample | Samples available | If in stock: 5–7 working days preparation; if not in stock: approximately 12 working days preparation. Stock status subject to confirmation. | ||
| Shipping Time | Small quantities / Lightweight shipments：DHL: approximately 3-5 working days | Battery Shipping Line: approximately 10–12 working days to most cities Large quantities / Heavy shipments：Battery Shipping Line : approximately 10–12 working days | Sea freight: approximately 35 working days. | ||
| Charge Temperature | 0℃ to 45℃ | ||
| Discharge Temperature | -20℃ to 60℃ | Recommended Storage Temperature | Recommended storage temperature: Room temperature (15–35°C) Storage temperature range: -20–45°C (short-term) |
| Cycle Life / Capacity Retention |
100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80% |
||
| Certifications & Documents | MSDS/SDS available; other certifications subject to evaluation based on requirements. | ||
| Model | 655161-3S |
|---|---|
| Capacity | 2500 mAh |
| Nominal Voltage | 11.1 V |
| Internal Resistance | <180 mΩ |
| Typical Cell Weight | 125.0 g |
| Maximum Charge Voltage | 12.6 V |
| Cell Dimensions (T×W×L) | 19.5*51*61 mm(T × W × L) |
| Finished Pack Dimensions (with PCM & Wires) | 19.5*51*64 mm(T × W × L) Note: Final dimensions may vary depending on PCM placement, wire routing, connector type, or custom installation requirements. |
| Connector | Molex/JST/Customized |
| Sample | Samples available | If in stock: 5–7 working days preparation; if not in stock: approximately 12 working days preparation. Stock status subject to confirmation. |
| Shipping Time | Small quantities / Lightweight shipments：DHL: approximately 3-5 working days | Battery Shipping Line: approximately 10–12 working days to most cities Large quantities / Heavy shipments：Battery Shipping Line : approximately 10–12 working days | Sea freight: approximately 35 working days. |
| Charge Temperature | 0℃ to 45℃ |
| Discharge Temperature | -20℃ to 60℃ |
| Recommended Storage Temperature | Recommended storage temperature: Room temperature (15–35°C) Storage temperature range: -20–45°C (short-term) |
| Cycle Life / Capacity Retention | 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80% |
| Certifications & Documents | MSDS/SDS available; other certifications subject to evaluation based on requirements. |
Electrical & Protection Specifications
Electrical values shown below are typical reference values for preliminary selection. Protection options are configurable; final thresholds, current capability and PCM/BMS are confirmed according to the actual cell and application requirements.
| Standard Charge Current | 0.5C (1.25A) | Standard Discharge Current | 0.5C (1.25A) |
|---|---|---|---|
| Maximum Continuous Charge Current | 1.0C (2.5A) | Maximum Continuous Discharge Current | 1.0C (2.5A) |
| Discharge Cut-off Voltage | 8.25 V | Energy | 27.75 Wh |
| Cell Configuration | 3S1P | ||
| NTC Thermistor | NO / Optional | C-rate | 1.0C |
| Self-Discharge Rate | ≤ 3%/month (at 25°C) | Short-Circuit Protection | Yes |
| Over-discharge Protection Options | For multi-series battery packs, the PCM/BMS is selected based on the required continuous current and peak/inrush current (including OCP trip thresholds, delay settings, and current-handling capability), together with per-cell voltage monitoring requirements. After the hardware version is selected, the over-charge and over-discharge thresholds (and balancing strategy, if applicable) are finalized. Alternative PCM/BMS versions are available if specific protection thresholds or delay requirements are needed. |
Overcharge Protection Options | For 2S, 3S, 4S and higher-series battery packs, overcharge protection is configured on a per-cell basis according to the cell voltage, series configuration and selected BMS/PCM. Final thresholds are confirmed according to the actual cells and application requirements. |
| Overcurrent Protection Options | Multiple PCM/BMS options are available (e.g., 0.2A / 0.5A / 1A / 2.5A / 5A / 7A / 9A, with higher-current solutions available for suitable battery packs). OCP threshold and delay depend on the selected protection circuit. Our engineers will match the PCM/BMS to the required continuous current, peak current and application requirements. | ||
| Standard Charge Current | 0.5C (1.25A) |
|---|---|
| Standard Discharge Current | 0.5C (1.25A) |
| Maximum Continuous Charge Current | 1.0C (2.5A) |
| Maximum Continuous Discharge Current | 1.0C (2.5A) |
| Discharge Cut-off Voltage | 8.25 V |
| Energy | 27.75 Wh |
| Cell Configuration | 3S1P |
| NTC Thermistor | NO / Optional |
| C-rate | 1.0C |
| Self-Discharge Rate | ≤ 3%/month (at 25°C) |
| Short-Circuit Protection | Yes |
| Over-discharge Protection Options | For multi-series battery packs, the PCM/BMS is selected based on the required continuous current and peak/inrush current (including OCP trip thresholds, delay settings, and current-handling capability), together with per-cell voltage monitoring requirements. After the hardware version is selected, the over-charge and over-discharge thresholds (and balancing strategy, if applicable) are finalized. Alternative PCM/BMS versions are available if specific protection thresholds or delay requirements are needed. |
| Overcharge Protection Options | For 2S, 3S, 4S and higher-series battery packs, overcharge protection is configured on a per-cell basis according to the cell voltage, series configuration and selected BMS/PCM. Final thresholds are confirmed according to the actual cells and application requirements. |
| Overcurrent Protection Options | Multiple PCM/BMS options are available (e.g., 0.2A / 0.5A / 1A / 2.5A / 5A / 7A / 9A, with higher-current solutions available for suitable battery packs). OCP threshold and delay depend on the selected protection circuit. Our engineers will match the PCM/BMS to the required continuous current, peak current and application requirements. |
